Detail


4.3-inch Color Screen

Made for long-lasting security

To guard the door and make you feel secure around the clock, the HP2 uses a built-in battery with a relatively long standby time, so you don’t no need to recharge it frequently.

Compatible Door Thickness:
35 - 105mm

Compatible Peephole Diameter:
14 - 26mm

Built to fit easily and tightly

The HP2 is easy to install without complicated wiring or tools, as long as there’s a compatible hole on your door. You can have the door viewer up and running in no time, all by yourself.

HP2
See visitors, from wherever you are

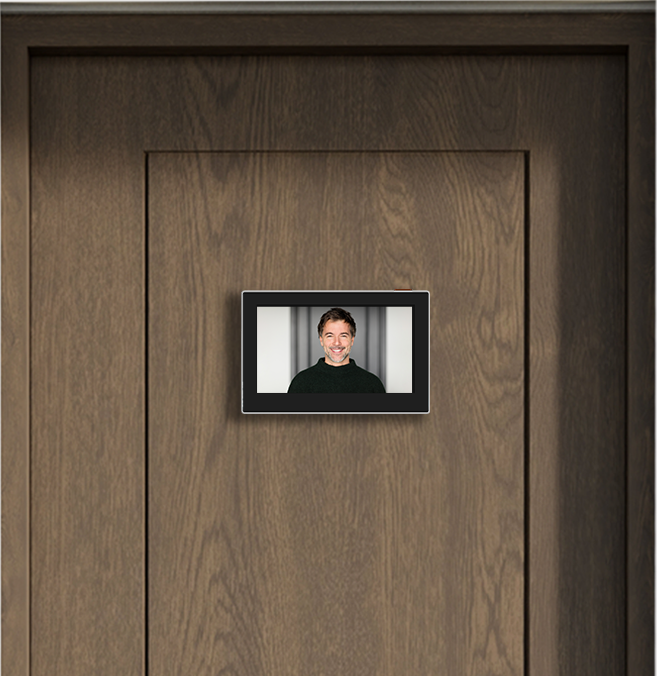

HP2 Wire-Free Peephole Door Viewer
Specifications
Specifications
ModelCS-HP2-R100-6E2WB-GD, CS-HP2-R100-6E2WB-GR
Installation Parameters
Supportive Hole Diameter14 to 26 mm (0.55 to 1.0 inch)
Supportive Door Diameter35 to 105 mm (1.38 to 4.13 inch)
Camera Parameters
Sensor1/3" Progressive Scan CMOS
Lens2.0 mm @ F1.6, visual angle (diagonal):146°
Max. Resolution1080p / 2MP
Video Frame Rate15fps
Interface
Buttons1. Screen Wake-up Button （Reset button） 2. On/off Button
Network
ProtocolEZVIZ Cloud Proprietary Protocol
Video ViewingLocal and remote video Viewing
General FunctionCloud video encryption and image encryption
Wireless
Wi-Fi StandardIEEE802.11b, 802.11g, 802.11n
Frequency Range2.4 GHz ~ 2.4835 GHz
Channel BandwidthSupports 20 MHz
Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate11b: 11Mbps, 11g :54Mbps, 11n :150Mbps
General
Screen4.3-inch color screen
ColorSilver/Golden
Operating Conditions-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power SupplyDC 5V (±10%)
Power ConsumptionMax. 2W
DimensionScreen: 113*75*20 mm (4.45*2.95*0.97 inch)
Peephole: 32 mm Diameter (1.26 inch Diameter)
Weight190g (6.7oz)
In the box
In the box- Camera
- Panel
- Mounting Base
- Power Cable
- Screws × 8
- Regulatory Information ×2
- Quick Start Guide
Certifications
CertificationsCE / WEEE / ROHS / REACH
