Specifications | |
---|---|
Model | CS-H9c-R100-8G55WKFL |
Camera | |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter |

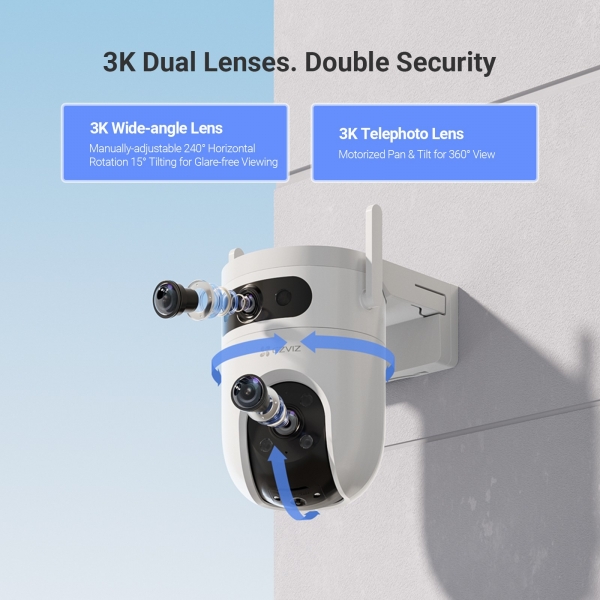

Lens | Fix Lens: 2.8mm@ F1.6, viewing angle: Diagonal 132°, Horizontal 110°, vertical 58° Pan&Tilt Lens: 6mm@F1.6, viewing angle: Diagonal 64°, Horizontal 56°, vertical 29° |
PT Angle | Pan: 350°, Tilt: 80° |
Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
Lens Mount | M12 |
Day & Night | IR-cut filter with auto-switching |
DNR | 3D DNR |
WDR | Digital WDR |
Black & White Night | 30m / 98ft |
Video & Audio | |
Max Resolution | 2880 × 1620 |
Frame Rate | Max:15fps; Self-Adaptive during network transmission |
Video Compression | H.265 / H.264 |
H.265 Type | Main Profile |
Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
Audio Bit Rate | Self-Adaptive |
Network | |
Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth | Supports 20MHz |
Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps |
Wi-Fi Pairing | AP paring |
Protocol | EZVIZ cloud proprietary protocol |
Interface Protocol | EZVIZ cloud proprietary protocol |
Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
Security | WPA-PSK/WPA2-PSK |
Functions | |
Smart Alarm | AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection |
Auto Tracking | Supports |
Customized Alert Area | Supports |
Two-way Talk | Supports |
Preset locationss | Supports |
General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
Storage | |
Local Storage | Supports microSD Card (Up to 512 GB) |
Cloud Storage | EZVIZ CloudPlay storage |
General | |
Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
IP Grade | Weatherproof Design |
Power Supply | DC 12V/1.5A |
Power Consumption | MAX. 12W |
Dimensions | 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch) |
Packaging Dimensions | 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch) |
Weight | Net Weight: 668 g With Package: 960 g |
In the box | |
In the box | - H9c Camera (x1) |
- Drill Template (x1) | |
- Screw Kit (x1) | |
- Waterproof Kit (x1) | |
- Power Adapter (x1) | |
- Regulatory Information (x2) | |
- Quick Start Guide (x1) | |
Certifications | |
Certifications | CE / UKCA/WEEE / RoHS / REACH |
